๐Ÿ‘ Pre migration analysis

info

This feature is in Preview at this moment, so features / UI could change. Also, review the results as they could be improved in the future.

Get a detailed risk assessment and tailored recommendations to migrate your application successfully.

Generate the reportโ€‹

We can generate a report of the schema we are about to migrate. This is useful to understand the structure of the data and how it will be represented in MongoDB.

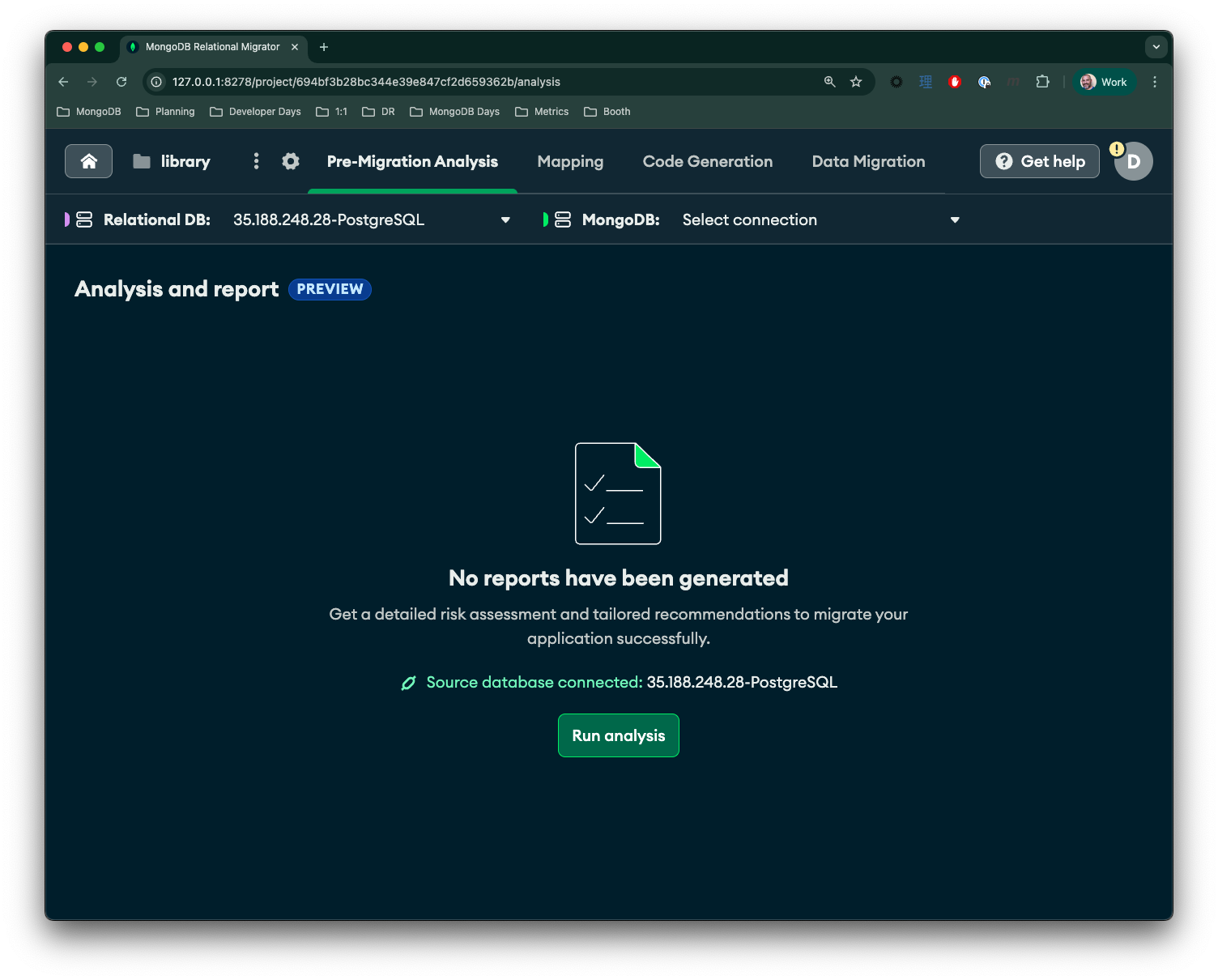

  • To do that, click on the Pre-Migration Analysis tab.
  • Then click on Run analysis.
Pre-migration analysis selected

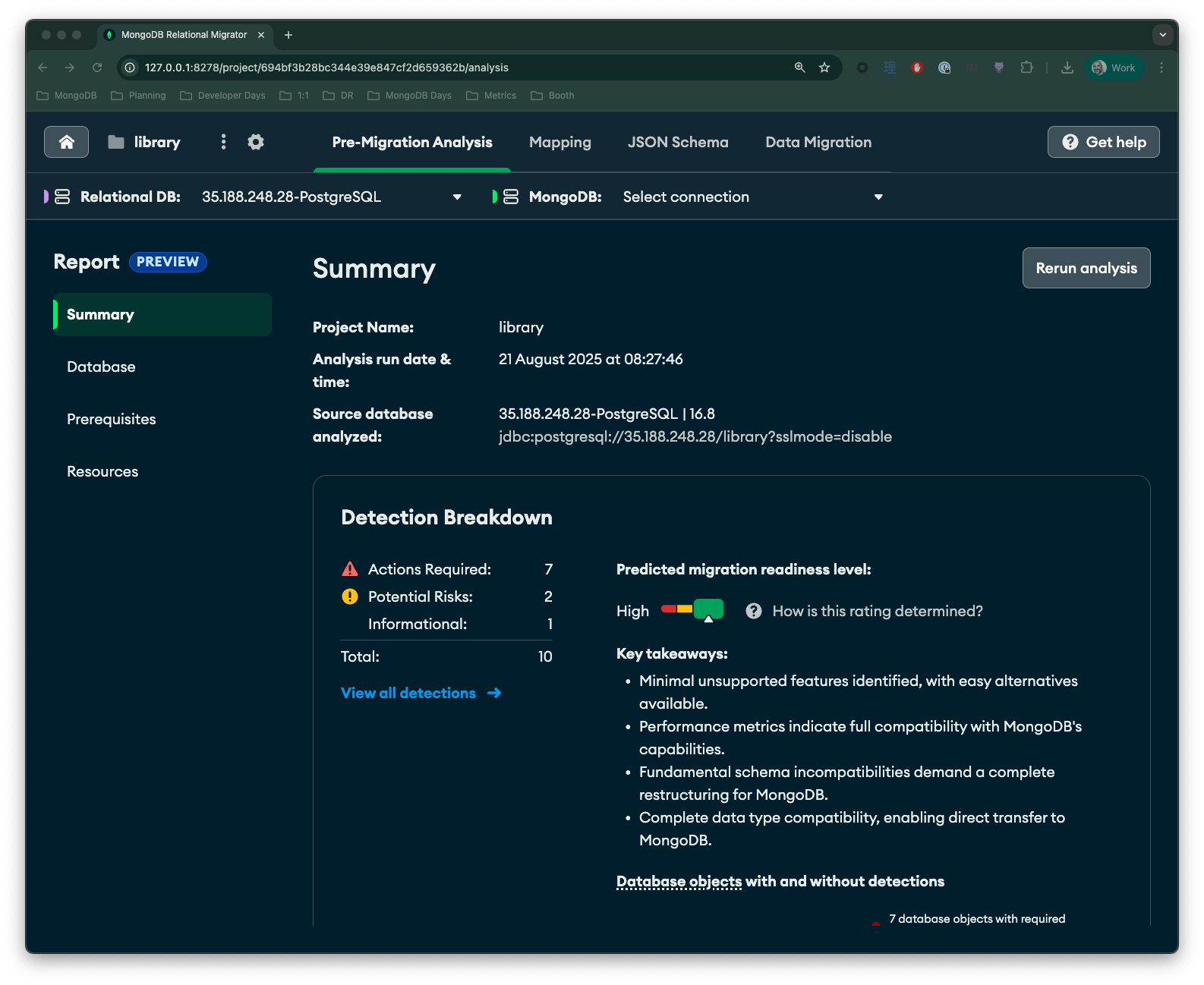

Review the Summaryโ€‹

You'll see a summary of the analysis, which includes:

  • The Predicted migration readiness level, that will give you a rough idea of how ready your schema is for migration.
  • The number of tables, stored procedures, triggers and views in the relational schema.
  • The size of the database.

Review the Databaseโ€‹

If you click in Database, you can see all detected risks in the Impact analysis tab.

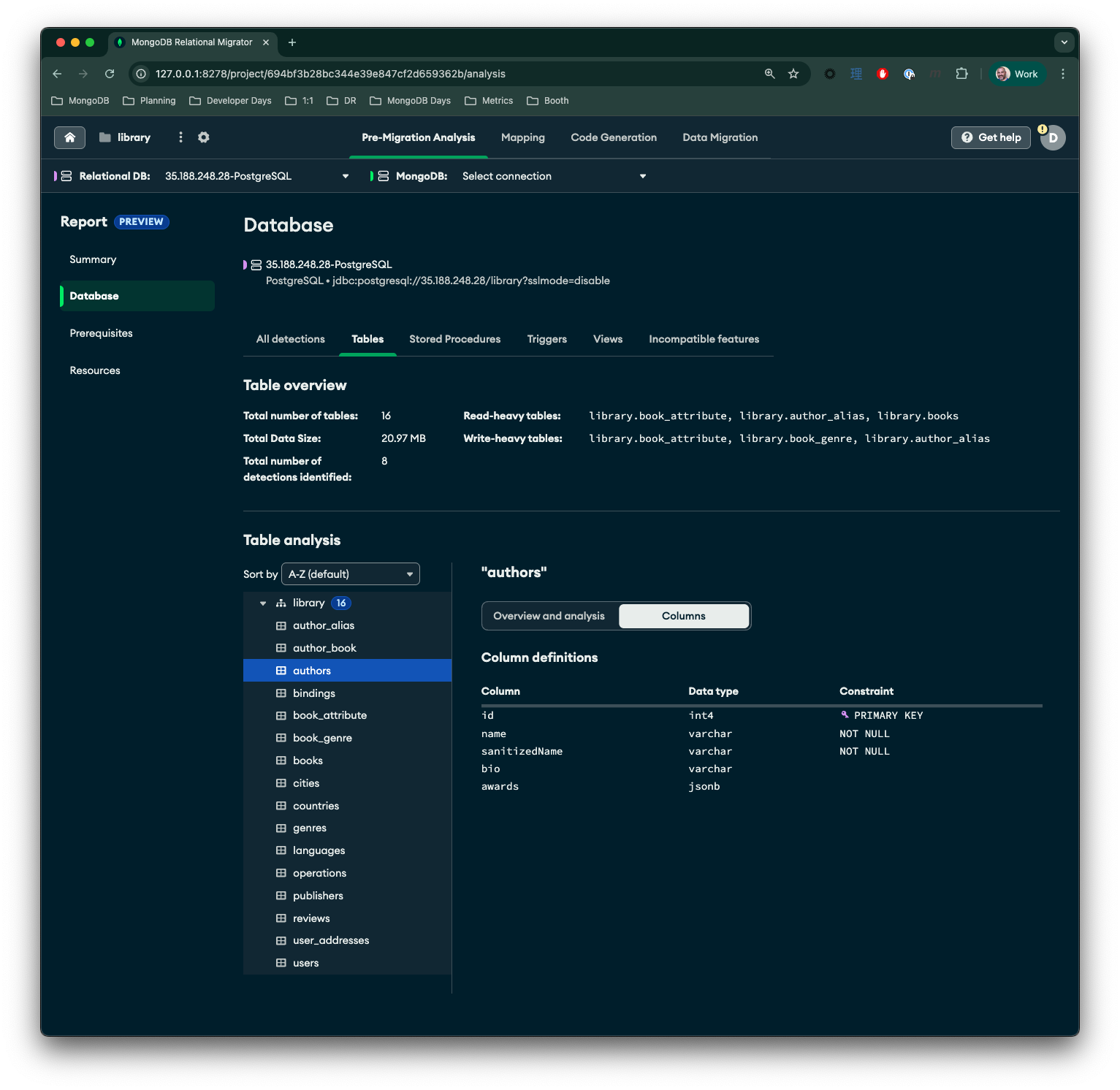

From there, you can review the Tables in detail, including number of rows, columns, types, etc.

Pre-migration analysis selected

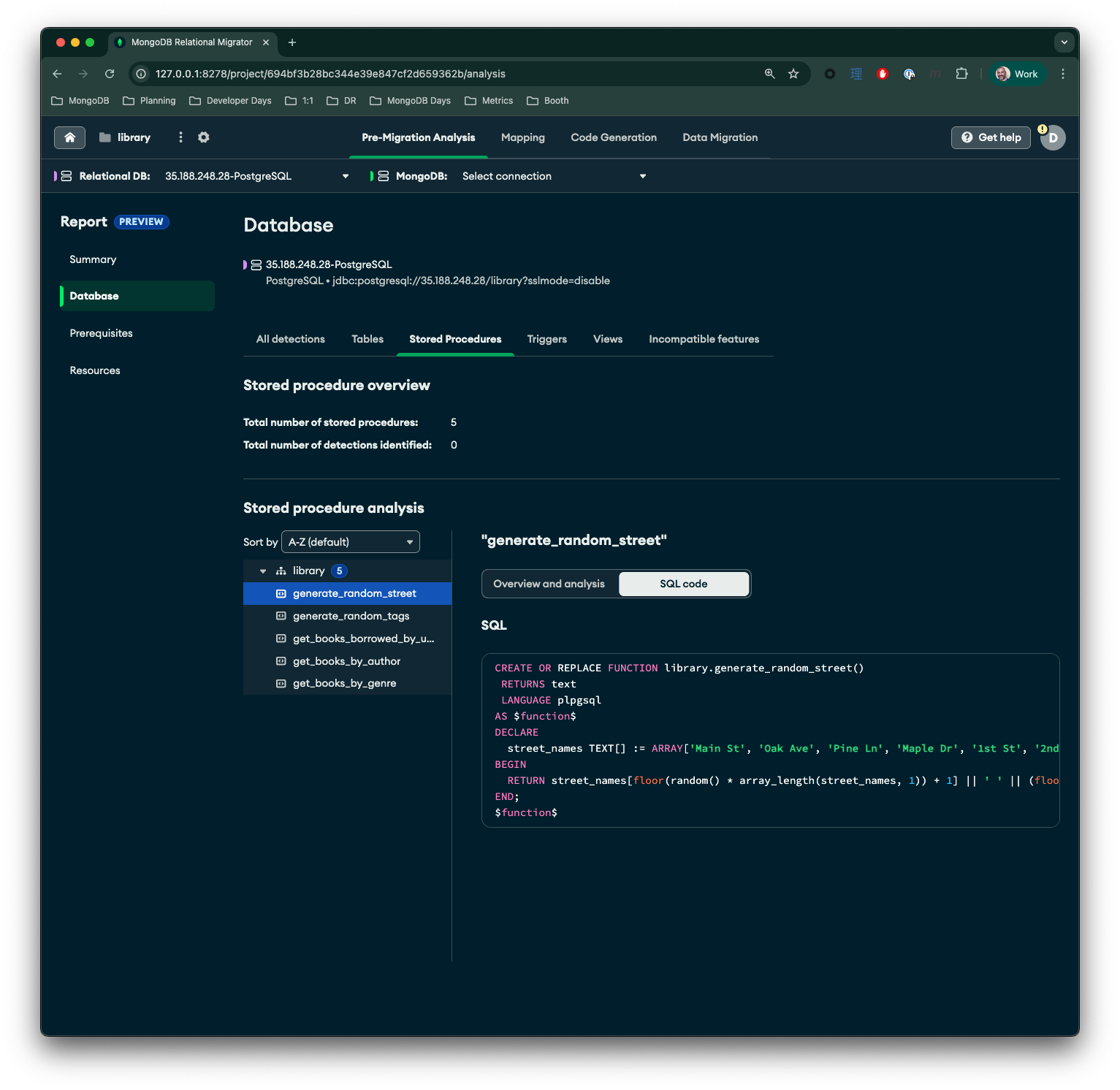

You can also check the Stored procedures, Trriggers and Views and even review the SQL code.

Pre-migration analysis selected

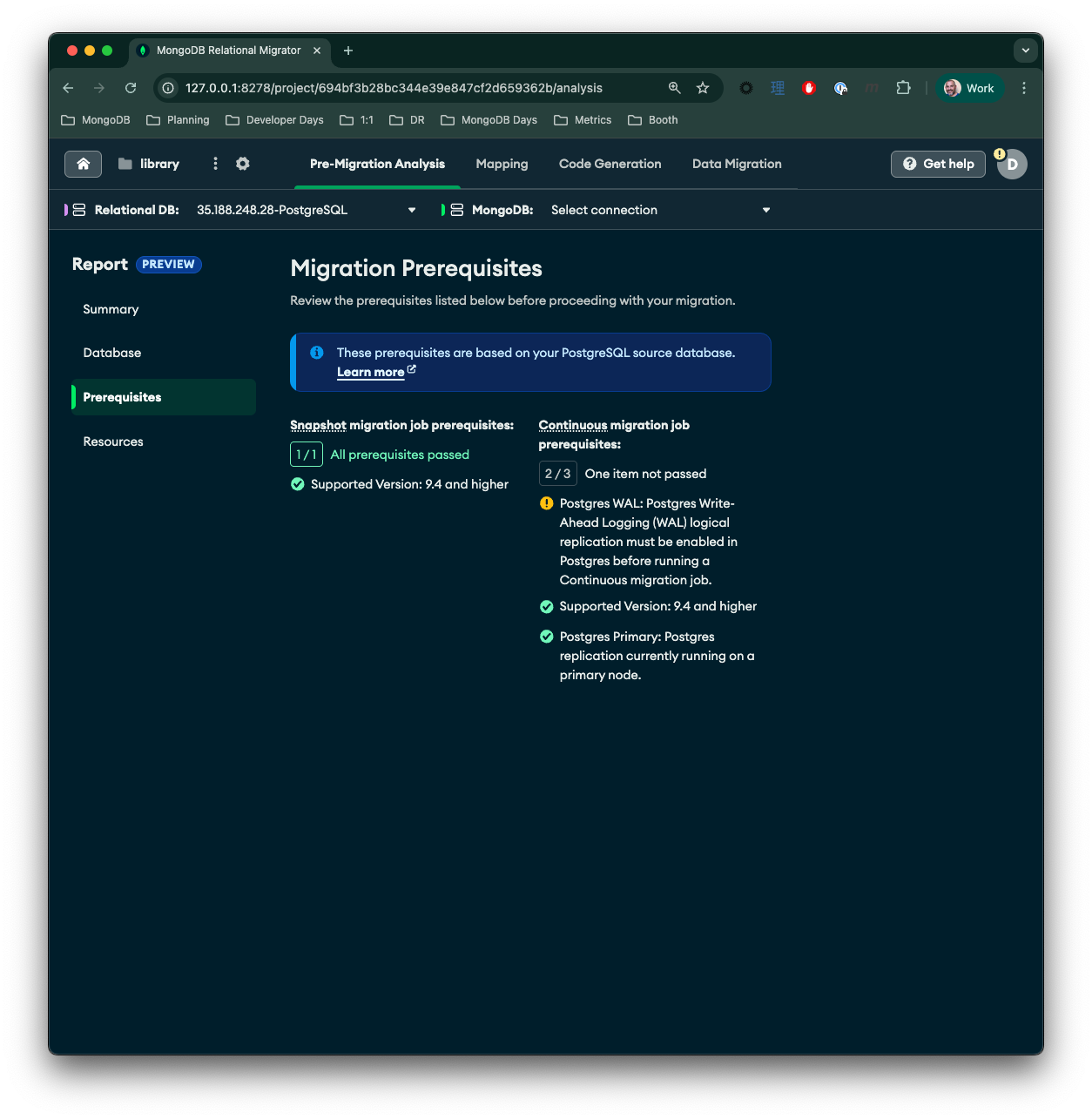

Migration Prerequisitesโ€‹

In the Migration prerequisites tab, you can the prerequisites for the migration. In this case, we see that Postgres Write-Ahead Logging (WAL) logical replication must be enabled in Postgres before running a Continuous migration job.

Pre-migration analysis selected

Resourcesโ€‹

More information and documentation to help you plan your migration.
